Simware 7.1.50 – External Aux Port access

Simware7 7.1.50 is using Virtualbox as the virtualization platform for the routers and switches.

An inconvenience is the fact that the local console access has fixed screen size and no copy/paste is available.

So how can we still use an external terminal application like Putty to manage the Simware box ?

Well, the local VM console operates as the con 0 of the device. Great, but since there are no VM integration tools installed inside the Simware image, there is no copy/paste of text, no screen resize etc. So this is not ideal to work with, it would be much easier if we could use the classic Putty or alternative terminal application.

The image shows the local console login (through the local VM), which does not allow any copy/paste of text:

20140403_132942_simware-7.1.50-aux-putty-000002

But since the CON 0 is mapped to the local screen output, using putty on the console will not be possible.

Solution : AUX 0 !

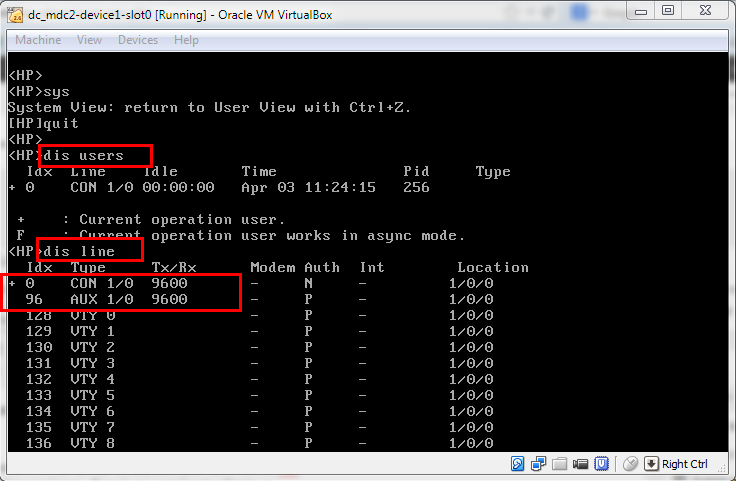

But we also have an AUX port, as you can see in the display line (comware7 got rid of the user-interface command and uses line again) output:

20140403_133030_simware-7.1.50-aux-putty-000003

By default, the AUX port does not require authentication, but you will only get network-operator (read-only) access.

So first you need to grant the read-write (network-admin) role to anyone using the aux port for device access.

This example assumes a chassis in IRF mode as Member ID 1 (which is why you get AUX 1/0), a non-chassis Simware switch would just have line aux 0.

line aux 1/0
 user-role network-admin
 quit

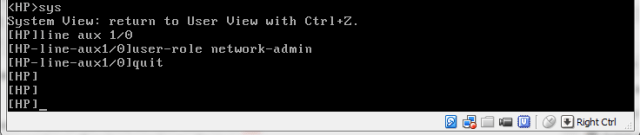

Sample output:

20140403_133137_simware-7.1.50-aux-putty-000004

The AUX 0 port is actually mapped to the serial port COM2 of the Virtualbox VM.

When you look at the Simware VM properties of the COM2, you will see that it is mapped to a local named pipe.

This can be used as a target device from e.g. the Putty serial port interface and will give you a “normal” terminal editor again.

Image shows the settings of the VM serial port 2, and the configuration for Putty Serial port:

20140403_133307_simware-7.1.50-aux-putty-000005



Now just open the connection in Putty and you will get access through the AUX 0 port.

So now the screen can be resized and you have copy/paste again !

The AUX access is demonstrated using the display users output (check the “F” sign next the AUX 1/0, which means the current operator interface)

20140403_133505_simware-7.1.50-aux-putty-000006



So this shows how you can access the COM port of a Virtualbox VM, in this case Simware, using Putty.

This entry was posted in Comware7, Simware7 and tagged , , , , . Bookmark the permalink.

3 Responses to Simware 7.1.50 – External Aux Port access

  1. Michael says:

    I´m asking myself whether I canaccess Simware 7 devices via IP/SSH/telnet?

    • sure, just bind an interface of the Simware instance to one of the Virtualbox bridge interfaces and you can do full in-band remote management or setup OSPF peering with an external host.

    • Wan says:

      When using Simware 7.1.50 on Windows, you’ll get an M-E1/0/1 port, which I think is referring to “Management port” of the simulated device.

      Do the following:
      1) Link the port M-E1/0/1 (a.k.a. interface 1 of the simulated device) to the host PC.
      For example:
      device 11 : interface 1 host : “VirtualBox Host-Only Ethernet Adapter”
      Note: The VirtualBox virtual NIC’s name may vary.

      2) Configure M-E1/0/1 port with an IP address, e.g. 192.168.56.101 255.255.255.0
      3) Configure the host PC, Virtualbox virtual NIC with an IP address, e.g. 192.168.56.1 255.255.255.0

      You’ll then be able to access the simulated device via IP/SSH/Telnet (e.g. using PuTTY)
